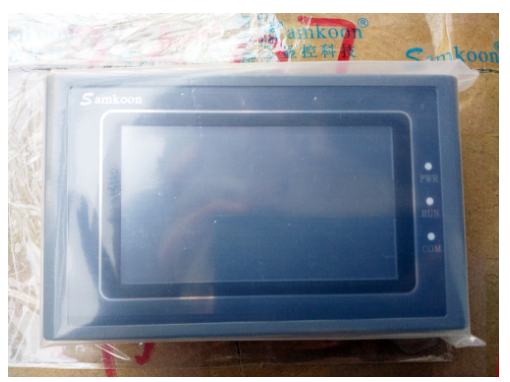

SK-043FE Samkoon HMI Touch Screen 4.3 inch 480*272 1 USB Host

SK-043AE Key Technical Parameters

Model

SK-043AE

Display Size

4:3”(length : width=16:9)

Resolution

480 x272

Brightness

400 cd/m2

Contrast

400 : 1

color

262, 144 color

Backlight

LED

Control panel

4-wire high-precision electric resistance touch screen

COM

COM1 (RS232, RS422, RS485)

USB download port USB Device

YES

USB port USB Host

YES

Ethernet port

None

SD card

None

Storage

128M FLASH + 64M SDRAM

CPU

32-bit 400MHz RISC

Supply power

DC: 24V (±15%),6W

Power consumption

3W

FCC compatibility

FCC, Class A

Pressure-proof test

1000V AC / per minute

CE certification

EN55022 EN55024

Operation temperature

-10~650

Operation humidity

10~90%RH( no condensation)

Shockproof degree

10-25Hz( X Y Z dimension 2G/30 minutes)

Protection Level

IP65( front panel)

Curst material

Engineering plastic ABS + PC

External size

151x 93x 39(mm)

Installed portiforium size

142x 85 (mm)

weight

About 0.2kg

Configuration software

SKWorkshop
